Foil Spinners and Heat Shrinkers
|
Spinning head mounted on pneumatic column. Push button to apply foil.
Movie of unit.
- For aluminum, tin, and polylaminate foils. Works with foils from all manufacturers.
- This system provides the most consistent application of capsules.
- 800 per hour
- To operate: Place capsule on bottle and bottle on platorm. Push button (lower right in photo). Bottle is automatically raised, foil applied, bottle lowered.
- The height of the roller unit is easily adjusted on the stand to accomodate bottles from 7" to 15".
- 110V, 0.3HP, 3.6A
- maximum capsule length 60 mm
- For bottle neck diameters 25 to 33 mm.
- 1400 RPM
- bronze rolling spindle
- adjustable rolling pressure
- You need a small air compressor. 2 scfm is sufficient.
- Adjustment on stand is self-evident. Top of bottle should be ~1" below spinner head. Set regulator on unit (on back, not visible in photo) to 5-6 bar (75-90 psi). Set your compressor regulator to >90 psi.
|
 |
|
- For aluminum, tin, and polylaminate foils. Works with foils from all manufacturers.
- Same roller unit as the Table Top model but mounted on stand. Lever lowers roller onto bottle and then springs back when released. Easier and faster than Table Top alone.
- The height of the roller unit is easily adjusted on the stand to accomodate bottles from 7" to 14".
- 110V, 0.3HP, 3.6A
- maximum capsule length 60 mm
- For bottle neck diameters 25 to 33 mm.
- 1400 RPM
- bronze rolling spindle
- adjustable rolling pressure
|
 |
|

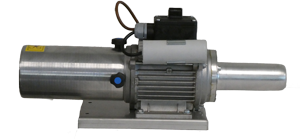

Place the spinner on table top. Push baseplate up against edge of the table as in photo above.
- For aluminum, tin, and polylaminate foils. Works with foils from all manufacturers.
- 110V, 0.3HP, 3.6A
- maximum capsule length 60 mm
- For bottle neck diameters 25 to 33 mm.
- 1400 RPM
- bronze rolling spindle
- adjustable rolling pressure
|
 |
|
Improved model with fan assisted heating
- Fan blows heat for more uniform and professional application.
- 110 V. 1000 Watts (compared to 700 watts on similar units)
- Takes ~1 second to shrink PVC capsule.
- Simply lower unit until Stop touches bottle, then remove. Fast, consistent and easy.
- 3-position switch. Off, Fan only, Fan and Heat.
- maximum capsule diameter 40 mm
- max capsule length 70 mm
- 304 Stainless Steel
- Please note this unit gets hot. Leave the fan on (Position I on the switch) for several minutes after use for faster cooling.
- Two units are recommended if you wish to operate continuously for more than 2 hours. Alternate between units every hour.
- New units often give off an acrid odor. We recommend turning on outside the first time.
|
 |
|
- 304 Stainless Steel
- 110 V, 1000 Watts
- Takes ~1 second to shrink PVC capsule.
- Quickly slide bottle neck into heating element.
- Heating element has perforated stainless safety cover
- maximum capsule diameter 40 mm
- Two units are recommended if you wish to operate continuously for more than 2 hours. Alternate between units every hour.
- New units often give off an acrid odor. We recommend turning on outside the first time.
|
 |
