Lenticular Filter Housings and Modules

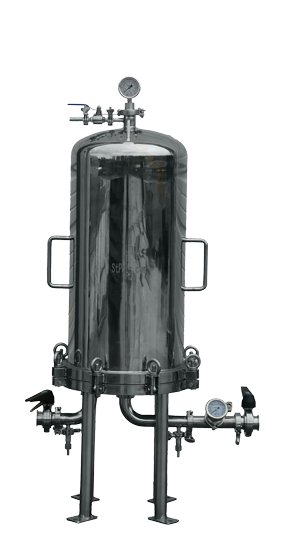

Lenticular Housings


Complete with 2 valves, 2 gauges, 3 drain/vents on inlet and outlet and top.

  • 4 legs
  • 2 Sanitary pressure gauges on top and outlet
  • Two 1.5" butterfly valves on inlet and outlet
  • Air vent on top
  • Drain on inlet and outlet piping
  • 304 Stainless, mirror polish
  • up to 6 bar
  • For flat gasket modules

Lenticular filters use the same material as Plate and Frame.

But lenticular has several operational advantages.

  • No product loss.
  • No drip
  • Much easier to load. No need to wet sheets and retighten.
  • Easier to clean.
  • Modules can be cleaned, stored and reused.

Housings can be used with as little as one module.

For example, a 4-High can be loaded with 1, 2, 3 or 4 modules.

A different center post is required for each.

For example, 4-High Housing is supplied with 4H center post. To use 2 modules, you need the optional 2H center post.

This flexibility permits more efficient pairing of modules to varying batch sizes.

12"  Housings
swivelWheels-img
  $2,495.00
swivelWheels-img
  $2,695.00
swivelWheels-img
  $2,895.00
swivelWheels-img
  $3,095.00
16"  Housings
swivelWheels-img
  $2,995.00
swivelWheels-img
  $3,195.00
swivelWheels-img
  $3,395.00
swivelWheels-img
  $3,650.00

Optional Center Posts

Note that each housing is supplied with corresponding center post. 1-High with 1H post, 2-High with 2H post, 3-High with 3H post, 4-High with 4H post.

But you can you can use 3 modules in a 4-High housing by purchasing a 3H post, 2 modules in a 4-High housing with 2H post, and 1 module in 4-High housing with 1H post ......

swivelWheels-img
  $85.00
swivelWheels-img
  $105.00
swivelWheels-img
  $125.00

Closeout of Filtrox Sheets and Modules

10% Below Filtrox' Best Wholesale Price (40' container)

We have more than two 40' containers of sheets and modules. They will not be restocked.

  • 12" and 16" Modules
  • XE
  • AF--higher capacity than XE
  • AFPlus backflushable
  • 12"--1.8 m2 surface area
  • 16"--3.6 m2 surface area
  • flat gasket

12" Module Each Retention
micron (µ)

Filtration Type


$170.00
$101.00
15-35µ Coarse

$170.00
$101.00
6-15µ Fine

$170.00
$101.00
4-9 µ Fine

$170.00
$101.00
1.5-3µ Fine

$173.00
$103.00
0.6-1.5µ Fine

$177.00
$106.00
0.5-0.8µ Fine

$229.00
$140.00
10-30µ Coarse

$229.00
$144.00
0.5-0.8µ Sterile

$234.00
$145.00
0.4-0.6µ Sterile

$229.00
$144.00
6-15µ

Fine

Backflushable


$229.00
$144.00
5-12µ

Fine

Backflushable


$229.00
$144.00
4-9µ

Fine

Backflushable


$229.00
$144.00
1.5-3.0µ

Fine

Backflushable


$229.00
$144.00
0.6-1.5µ

Fine

Backflushable

16" Module Each Retention
micron (µ)

Filtration Type


$232.00
$137.00
15-35µ Coarse

$232.00
$139.00
6-15µ Fine

$232.00
$140.00
4-9 µ Fine

$232.00
$140.00
1.5-3µ Fine

$238.00
$144.00
0.6-1.5µ Fine

$244.00
$144.00
0.5-0.8µ Fine

$305.00
$189.00
10-30µ Coarse

$305.00
$187.00
6-15µ Fine

$305.00
$190.00
5-12µ Fine

$305.00
$188.00
4-9µ Fine

$305.00
$188.00
1.5-3.0µ Fine

$305.00
$190.00
0.6-1.5µ Fine

$305.00
$189.00
0.5-0.8µ Sterile

$322.00
$200.00
0.4-0.6µ Sterile

$360.00
$225.00
6-15µ Fine

$360.00
$225.00
5-12µ Fine

$360.00
$225.00
4-9µ Fine

$360.00
$225.00
1.5-3.0µ Fine

$360.00
$225.00
0.6-1.5µ Fine
