Superior quality features of St. Pats Letina tanks

  • All tanks are sold complete with valves
  • Lifting arms with 2 brackets (not one) welded to tank for smooth operation
  • High quality welds—polished and treated—not porous
  • Tank ports are Swaged to increase strength (as opposed to simply butt-welding ferrules to flat punched hole)
  • Seamless manway welds
  • Reinforcing Ring on racking port
  • High quality Vent-211
  • 2R finish, 304 German stainless steel. [2R aka BA-bright annealed]

Swaged Port and Reinforcing Ring.

Swaging means punching a hole, then pushing out the tank wall. This makes a stronger connection. All ports are swaged.

Reinforcing Ring is actually on the inside of the tank but its outline can be seen in the photo. It is 3.5" diameter x 1/4" thick. This greatly strengthens the racking valve connection.

The reinforcing ring was introduced to the American market by Letina nearly 20 years ago.

Vent-211 is a better quality design. The vent attaches to a 2" diameter pipe (~4" long). This pipe reduces the problem of wine coming through the vent.

Sprinkler of pump-over system. Pump-over is standard on VIK tanks.

image closed top jacket

Superior Cooling Jacket Design

Cooling jackets are oriented vertically on the back of the tank. This allows efficient cooling with any amount of product.

Image of 2 jackets

Open top tanks have 2 jackets on the back. One on top half, and one below. If tank is full, use the jackets in series. If the tank is not full, then use the lower jacket only.

This prevents condensation on the inside of the tank, above the lid, which then runs down into the lid. This can result in mold growth.
Sloped-Bottom Tanks—Variable Capacity
  • Flat bottom is sloped from back to front (5%) to make cleanout easier.
  • Complete with 2 Butterfly Valves, Sample Tap, floating lid, inflatable gasket, air pump, vent 211
  • Tanks with Cooling Jackets. 2 on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM.

swivelWheels-img
  $4,095.00

1000 L, 265 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $5,995.00

1900 L, 504 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $9,595.00

3950 L, 1047 gal with cooling jacket

 View Drawing View Specs

  $12,495.00

5900 L, 1564 gal with cooling jacket

32" legs--bin can fit below manway

 View Drawing View Specs

Conical Bottom Tanks--Variable Capacity
  • Conical dish bottom, off center
  • Complete with 2 Butterfly Valves, Sample Tap, floating lid, inflatable gasket, air pump, vent 211
  • Tanks with Cooling Jackets. 2 on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM.

swivelWheels-img
  $1,150.00

300 L, 80 gal

 View Drawing View Specs

  $1,595.00
qty:
SOLD OUT

600 L, 160 gal

 View Drawing View Specs

swivelWheels-img
  $2,395.00
qty:
SOLD OUT

1100 L, 291 gal

 View Drawing View Specs

swivelWheels-img
  $3,795.00

2000 L, 530 gal

 View Drawing View Specs

swivelWheels-img
  $1,695.00
qty:
SOLD OUT

600 L, 160 gal with cooling jacket

 View Drawing View Specs

  $3,295.00

1100 L, 291 gal with cooling jacket

 View Drawing View Specs


$4,695.00
$4,200.00

2000 L, 530 gal  with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $5,295.00

2000 L, 530 gal with cooling jacket and manway door

 View Drawing View Specs

swivelWheels-img

$8,995.00
$8,100.00

4000 L, 1060 gal with cooling jacket and manway door

 View Drawing View Specs

Tanks on Wheels--Variable Capacity

  • 3 Wheels welded to Conical dish bottom, off center.
  • Tanks can be moved when full.
  • Complete with 2 Butterfly Valves, Sample Tap, floating lid, inflatable gasket, air pump, vent-211
  • Tanks with Cooling Jackets. 2 on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM.

swivelWheels-img
  $1,395.00

300 L, 80 gal

 View Drawing View Specs

swivelWheels-img
  $1,695.00

600 L, 160 gal

 View Drawing View Specs

swivelWheels-img
  $2,795.00

1000 L, 265 gal

 View Drawing View Specs

swivelWheels-img
  $2,395.00

600 L, 160 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $3,695.00

1000 L, 265 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $4,895.00

2000 L, 530 gal with cooling jacket

 View Drawing View Specs

Forkliftable Tank--Variable Capacity

  • Tank can be lifted when full
  • Conical Dish bottom--off center
  • Complete with 2 Butterfly Valves, Sample Tap, floating lid, inflatable gasket, air pump, vent-211
  • Tanks with Cooling Jackets. 2 on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM.
  • Fork width maximum 23"

  $5,495.00

1950 L, 517 gal with cooling jacket

 View Drawing View Specs

VIK Closed Top Red Wine Tanks--Sloped Bottom
  • Flat bottom is sloped from back to front (5%) to make cleanout easier.
  • Pump over system with piping and spinning Sprinkler
  • Complete with 2 Butterfly Valves, Sample Tap
  • Vertical Cooling Jacket on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM
  • Tanks cannot be pressurized above 1 psi

swivelWheels-img
  $7,495.00

2000 L, 530 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $9,995.00

4000 L, 1060 gal with cooling jacket

 View Drawing View Specs

Z Closed Top White Wine Tanks
  • Conical Dish bottom--off center
  • Complete with 2 Butterfly Valves, Sample Tap
  • Vertical Cooling Jacket on back. Maximum inlet pressure is 35 psi. Typical flow rate is 3-6 GPM
  • Tanks cannot be pressurized above 1 psi

swivelWheels-img
  $3,495.00

750 L, 200 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $4,095.00

1000 L, 265 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $5,695.00

2000 L, 530 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img
  $7,295.00

3100 L, 820 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img

$8,795.00
$7,900.00

4100 L, 1075 gal with cooling jacket

 View Drawing View Specs

  $11,695.00

6100 L, 1616 gal with cooling jacket

 View Drawing View Specs

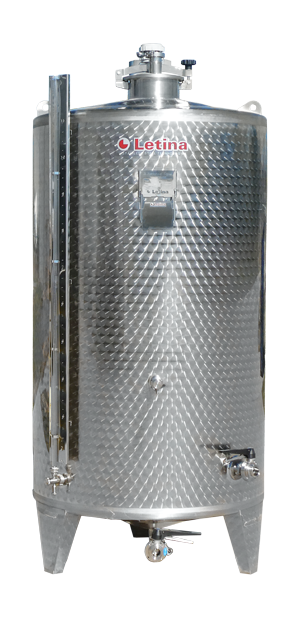

ZR Closed Top Storage Tanks
  • Conical Dish bottom--off center
  • Complete with 2 Butterfly Valves, Sample Tap
  • Tanks on wheels can be moved when full
  • Tanks cannot be pressurized above 1 psi

  $1,995.00

620 L, 165 gal

 View Drawing View Specs

swivelWheels-img
  $2,795.00

1100 L, 292 gal

 View Drawing View Specs

swivelWheels-img
  $4,095.00

2000 L, 530 gal

 View Drawing View Specs

swivelWheels-img
  $6,795.00

4100 L, 1075 gal

 View Drawing View Specs

swivelWheels-img
  $2,095.00

620 L, 165 gal on wheels

 View Drawing View Specs

swivelWheels-img
  $3,495.00

1100 L, 292 gal on wheels

 View Drawing View Specs

Mixing Tanks
  • Tanks can be moved when full.
  • 500 and 1000 liter ride on 3 wheels (1 swivel with locking brake)
  • 2000 and 3990 liter ride on 4 wheels (2 swivel with locking brake)
  • Conical Dish Bottom--off center
  • Complete with Butterfly Valve
  • Top is piano hinged. Folds back for easy loading
  • 230V, geared motor. Single phase for M500/1000. 3-phase on M2000/4000.
  • mixer--55 rpm
  • Scatter plate prevents whirlpooling (better mixingMixing Tanks Group Photo

swivelWheels-img
  $3,495.00

500 L, 133 gal

 View Drawing View Specs

  $4,695.00

1000 L, 265 gal

 View Drawing View Specs

  $5,095.00

1000 L, 265 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img

$6,395.00
$5,395.00

2000 L, 530 gal

 View Drawing View Specs

swivelWheels-img
  $6,995.00

2000 L, 530 gal with cooling jacket

 View Drawing View Specs

swivelWheels-img

$10,995.00
$8,995.00

3990 L, 1055 gal

 View Drawing View Specs

swivelWheels-img

$11,995.00
$9,995.00

3990 L, 1055 gal with cooling jacket

 View Drawing View Specs

Charmat Tanks

  • Fixed agitator (stirrer) included. 240V, 3-phase, 60 Hz.
  • Working pressure 6 bar (87 psi)
  • Working volume 1180 liter (312 gallon)
  • Total volume 1308 liter (347 gallon)
  • Cooling jacket
  • Stainless clad with 60 mm of insulation
  • Pressure equalization ball valve, 1.5" TC
  • Partial drainage ball valve, 1.5" TC
  • Total drainage ball valve, 1.5" TC

Inquire about custom Charmat tanks

swivelWheels-img
  $16,600.00
qty:
SOLD OUT

working volume 1180 L, 312 gal

 View Drawing View Specs

Square Tanks

Inquire about custom square tanks to optimize space. Square tanks offer 25% more volume in same footprint.

Stacked Tanks

Inquire about custom stackable tanks to optimize space. Any style of tank can be stacked and styles can be mixed. Most common are Z tanks and Square tanks.

swivelWheels-img
  $10,300.00

each tank 1300 L, 345 gal with cooling jackets

 View 3 Drawings
Tank Volume vs Diameter--Click Here

Multiply Lt/mm x 6.70997 to get Gallons/inch

Bottom volume: Multiply Liters x 0.265 to get Gallons
