| If the part you need is not listed on the page, then send an email. Include part number, photo, product serial number .... Provide as much info as possible to help us get the part. |
P35 Parts
| Click Here for P35 Manual |
GFI: You cannot use electric corkers on a circuit with GFI (Ground Fault Interrupter). Corkers have a frequency drive which will trip the GFI.
Bearing/screw/spacer that moves the cork pusher on all corkers.
~6-7/8" Length
M8x1.25 thread
Holds Cork Descent Tube

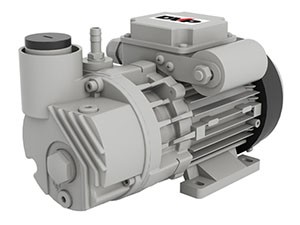

This is small bottle for one fill of vacuum pump.
Change oil every year at minimum. Vacuum pump takes about 4 ounces. Fill to middle of window. Pump does not work as well if it is overfilled.
Filter inline between vacuum pump and blue tank.
Oil usage is usually high during breakin period of pump. In particular, oil will leak out of the red filter on top of the pump. This should go away in a month or so. There is a microvalve in bottom of red filter that allows the oil to drain back.
Covers red filter on top of vacuum pump.
for P35, P45, Stelvin capper, labeling machine.
Do not remove wires from bad inverter until you have the new one.
We will email parameters.
aka Limit Switch. This is the safety interlock in the hopper. Also the Stop switch to stop a cycle.
white plastic bushing under bottle platform
4302. bearing that pushes against the jaw prism. on all corkers.
Long threaded rod for 187 mL bottles--P35/45 Electric Corker
This is used on P35/45 electric corkers only. For bottles less than 9" height. Raises the bottle platform ~2". Buy this on mcmaster.com (300 mm xM18x2.5 threaded rod)
P45 Parts
| Click Here for P45 Manual | |
| Click Here for P45B Manual | |
| Parts for P45B are nearly identical to standard P45 parts. Use P45 schematic to determine part number. Schematic is part of the P45 manual above. Newer versions (>2012?) of P45B have both electric and pneumatic power. If you have one of these, then large hopper spring is same as that on P12 (Tap0005). |
GFI: You cannot use electric corkers on a circuit with GFI (Ground Fault Interrupter). Corkers have a frequency drive which will trip the GFI.
Bearing/screw/spacer that moves the cork pusher on all corkers.
~6-7/8" Length
M8x1.25 thread
Holds Cork Descent Tube
for P35, P45, Stelvin capper, labeling machine.
Do not remove wires from bad inverter until you have the new one.
We will email parameters.
aka Limit Switch. This is the safety interlock in the hopper. Also the Stop switch to stop a cycle.
white plastic bushing under bottle platform
4302. bearing that pushes against the jaw prism. on all corkers.
Long threaded rod for 187 mL bottles--P35/45 Electric Corker
This is used on P35/45 electric corkers only. For bottles less than 9" height. Raises the bottle platform ~2". Buy this on mcmaster.com (300 mm xM18x2.5 threaded rod)
P12 Parts
| Click Here for P12 Manual |
- A 5 scfm compressor will suffice for the pneumatic corker at the maximum production rate.
- 28.5 NI/min = 1 scfm
14.00 mm Drive sprocket for P12 hopper.
If cork is not dropping into tube from the hopper of P12, you need either springTAP0008, or Tap0215/Tap0235.
1. To identify the problem part. Run the unit while observing the brass finger inside the hopper. If the brass finger does not rotate, then the spring TAP0008 is broken.
2. The brass finger should turn upward on the downstroke of the corker. It should NOT move on the upstroke of the corker. The pinion/freewheel turns freely in one direction only.

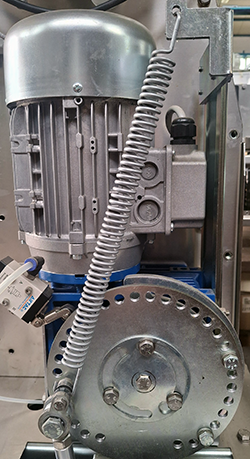

Position 122 on P12 hopper. This spring is also used on P45B that have both electric and pneumatic power. When assembling, Adjust chain length (usually 23 chain links) to insure the spring is not pulled into the gear cogs.
drive sprocket/bearing (Tap0215/0235) turn on this.
Bearing/screw/spacer that moves the cork pusher on all corkers.
~6-7/8" Length
M8x1.25 thread
Holds Cork Descent Tube
4302. bearing that pushes against the jaw prism. on all corkers.
This is used on P12 pneumatic corker only. M16 thread. For bottles ~ 7" to 9" height.
Replace standard spacer with this for magnum bottles on P12.

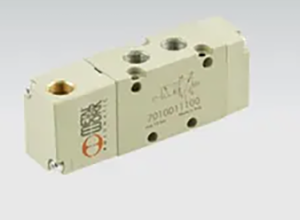

MetalWork valve for P12
You can get these at www.automation-dfw.com
Metalwork 7010011100 PNV25PNSOO
Be sure to drain your compressor tank daily. Moisture from the compressor can pass thru the system and eventually clog up--or rust out---these valves. there are 2 side by side on each P12. one controls the bottle stand cylinder, the other the main cylinder.
